HD multi-directional motion mixer
Under the driving force of the active shaft, the loaded cylinder undergoes cyclic compound movements such as translation, rotation, and rolling, promoting the material to move in three directions along the cylinder, thereby achieving the mutual flow, diffusion, accumulation, and doping of various materials, and achieving the goal of uniform mixing. Used for high uniformity mixing of powder and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining, national defense industry, and various scientific research institutions.
13606122988
Details

Equipment characteristics

★ The material has no centrifugal force, no specific gravity segregation, layering, or accumulation, and the mixing rate can reach 99.9%.

★ High loading rate, up to 80% (only 40% for ordinary mixers), high efficiency, and short mixing time.

★ The cylinder has circular arc transitions at all points, and has undergone precision polishing treatment to meet the "GMP" requirements.


Parameters

Project specifications

HD-1

HD-5

HD-15

HD-50

HD-100

HD-200

HD-400

HD-600

HD-800

HD-1000

Barrel volume (L)

1

5

15

50

100

200

400

600

800

1000

Maximum loading capacity (L)

0.8

4

12

40

80

160

320

480

640

800

Maximum loading weight (kg)

0.5

2.4

7.5

25

50

100

200

300

400

600

Spindle speed (r/min)

15~30

8~15

Motor power (kw)

0.12 0.25

0.37

1.1

1.5

2.2

4

5.5

7.5

7.5

Overall dimensions

(Long × wide × High)

500×600

×600

600×1000

×1000

700×1000

×1000

1000×1400

×1200

1200×1700

×1500

1400×1800

×1600

1800×2100

×1950

1900×2100

×2250

2200×2400

×2300

2250×2600

×2300

Overall weight (kg)

50

150

200

300

500

800

1200

1500

2000

2500

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

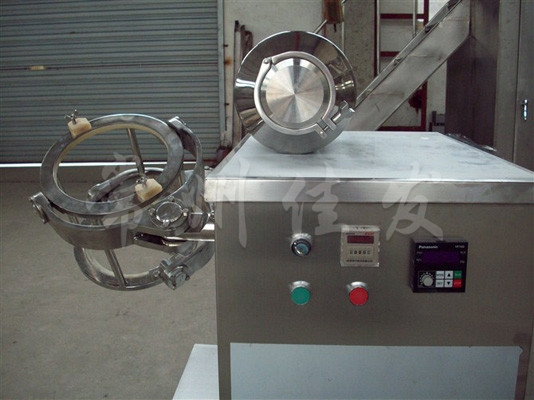

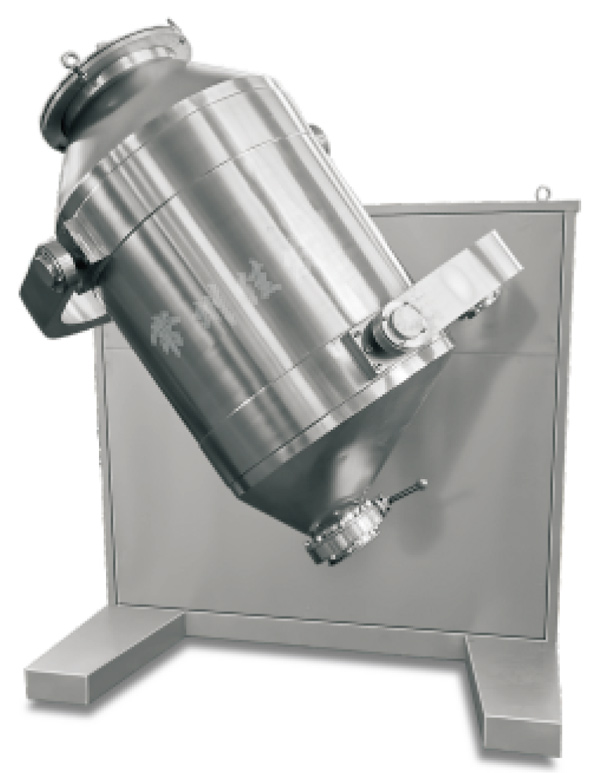

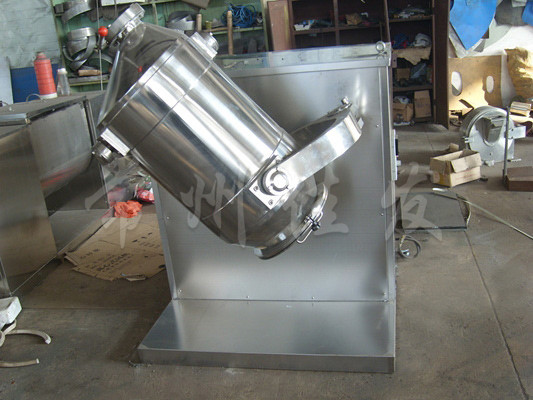

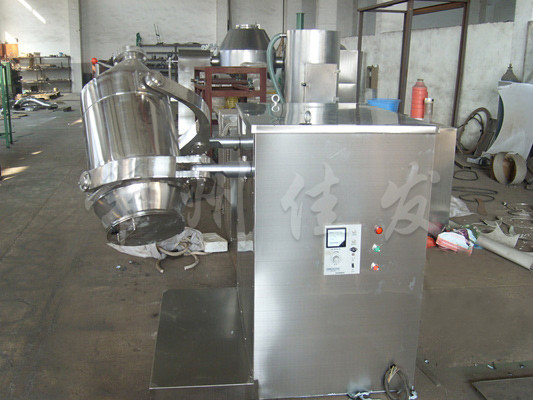

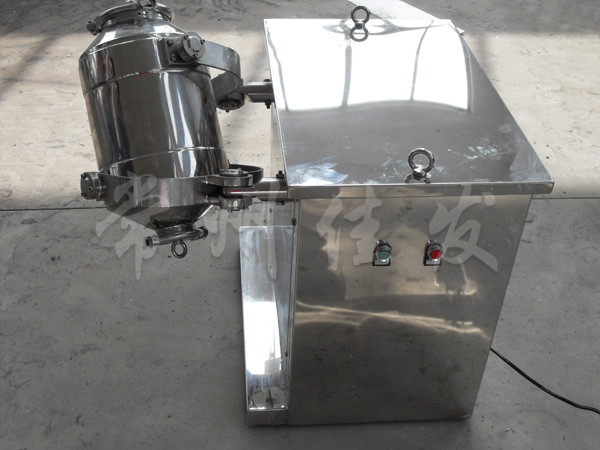

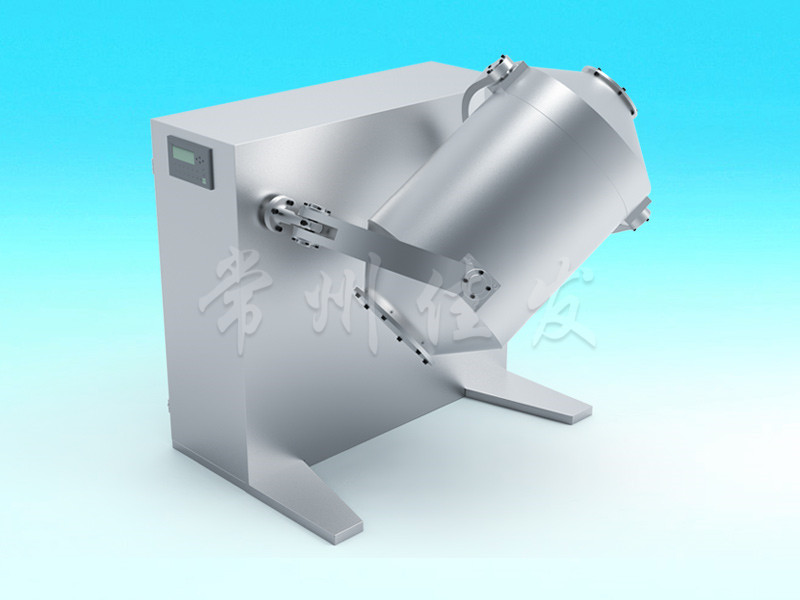

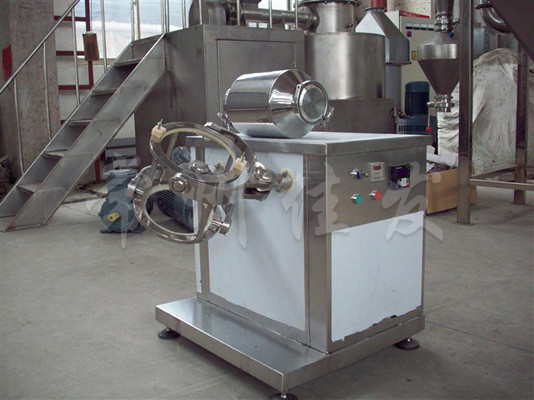

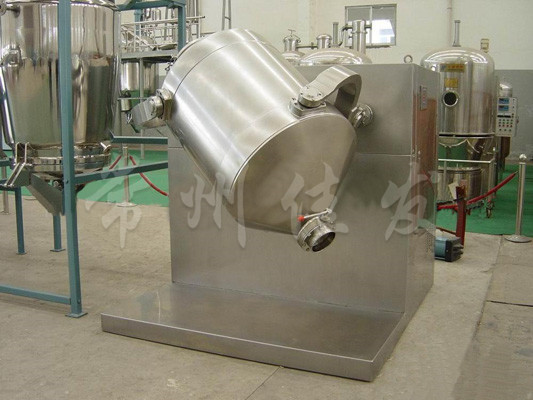

Photos
